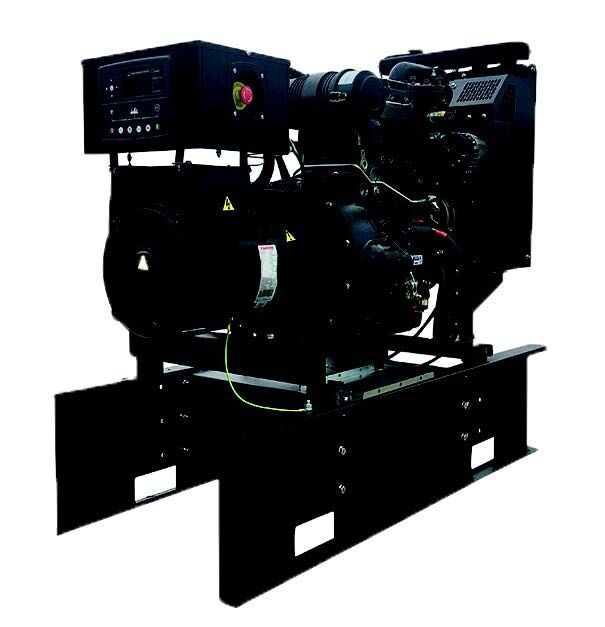

SHP 20S5 Generator

  • Perkins Powered
  • Stamford Alternator
  • DSE Controller
  • 21.6 kVA Standby @ 60 Hz
  • 19.6 kVA Prime @ 60 Hz

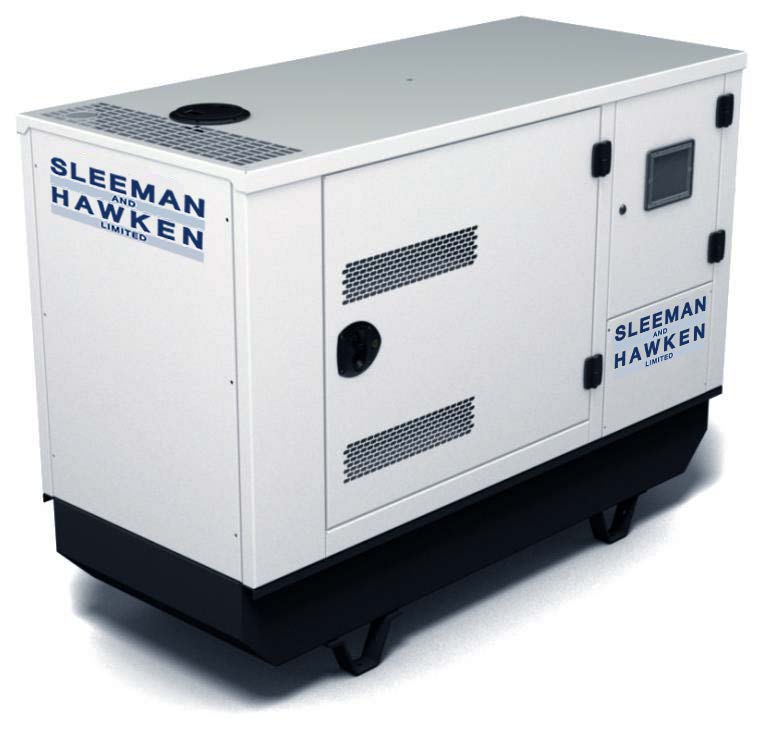

  • Canopy Optional

SKU: SHP 20 S5 Category:


The SHP 20 S5 model diesel generator provides up to 19.6 kVA prime @ 50Hz. These generators are powered by the world-renowned Perkins 404A-22G1 model engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK. These large generators are fully housed in custom-adapted shipping container enclosures to ensure security, safety and ease of use.

Strong & Corrosion Resistant

  • Steel base frame, polyester powder coated at over 200 degrees C.
  • High quality, ISO R898 structural bolts, Zinc coated or excellent corrosion resistance.
  • S275 steel, laser cut and CNC formed.
  • This product is produced in the UK, using locally sourced steel to BS, EN and ISO standards.

Quality Materials & Workmanship

  • Engineered from design to assembly, we provide cost-effective solutions to your needs.
  • The range of welded fuel tanks is exceptionally strong and durable.
  • UK suppliers are subjected to extensive checks within our ISO 9001 framework
  • In-house laser cutting and sheet metal facility allows production to high standards.

Service and Support

  •  All required parts for proper maintenance and support are available with short lead times.
  • Technical assistance on request.
  • International Perkins / Stamford warranty.

Safety, Security & Environment

  • Radiator fan and battery charging alternator fully guarded.
  • High-quality roof-mounted silencer for operator safety.

The Control Panel

The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.

  • Low oil pressure shutdown.
  • High engine temperature shutdown.
  • High engine temperature shutdown.
  • Under Voltage warning/shutdown.
  • Over speed / over frequency.
  • Under speed / under frequency.
  • Over crank / fail to start alarm.
  • Over current alarm
DSE7310 MK2
  • Manual and automatic modes.
  • Three phase voltage monitoring.
  • Three phase current monitoring.
  • Frequency monitoring.
  • Start, crank, crank rest, warm up timers.
  • Return and cool down timers.
  • Battery under / over voltage alarms.
  • Exercise scheduler

Engine Info

Engine Information
Engine Brand Perkins Displacement 2.216
Engine Model 404A-22G1 Cooling System Water Cooled
Engine Speed 1500 RPM Coolant Capacity 51.4 Litres
Cylinders 4 Lub Oil Capacity 7 Litres
Aspiration Natural Governor Type Mechanical
Combustion System Indirect injection

Alternator Info

Alternator  Information
Alternator Brand Stamford No of Leads 12 Wires
Alternator Model S0L2-G1 AVR Options AS540
Excitation Self Excited Voltage Regulation ± 1%
Insulation Type Class H Wave Distortion < 5.0 % on load
Drip Proof Protection IP 23 Telephone Interference THF < 2 %
Winding Pitch Two Thirds Winding Number 311/711
