SHP 135-200 Generator
Part No: SHP 135-200

  • Powered By Perkins Engines
  • Stamford Alternator
  • 136 kVA – 200 kVA Prime
  • 5oHz 3 Phase Configuration

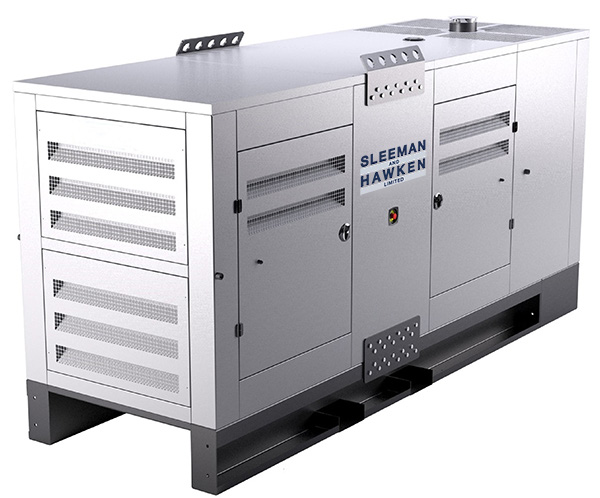

  • Canopy Optional

SKU: SHP 135-200 Category:

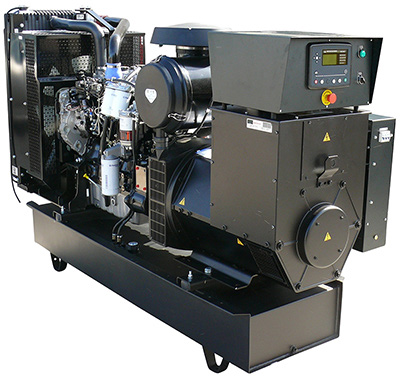

The SHP 135-200 model diesel generator is preconfigured for a 3-phase 50Hz output. These generators are powered by the world-renowned Perkins 1106A model engines and coupled to a Stamford alternator to provide consistent power and reliability. All our generators are assembled in the UK.

Strong & Corrosion Resistant

  • British steel base frame, coated with polyester powder coat at over 200 degrees C.
  • High quality, ISO R898 structural bolts, Zinc coated for excellent corrosion resistance.
  • Canopy CNC laser cut and CNC formed at the UK factory.
  • This product is only produced in the UK, using UK sourced steel to BS,EN and ISO standards.

Quality Materials & Workmanship

  • Engineered from design to assembly, we provide cost-effective solutions to your needs.
  • The range of welded fuel tanks are exceptionally strong and durable.
  • UK suppliers are subjected to extensive checks within our ISO 9001 framework
  • In house laser cutting and sheet metal facility allows production to high standards.

High Quality Power on Demand

  • Control panel has remote start / AMF as standard using UK made DSE7000 series control module.
  • Standard units offer not only excellent ratings aligned with key power nodes, but high overload capability and a wide range of options available on Stamford alternators

Safety, Security & Environment

  • Radiator fan and battery charging alternator fully guarded.
  • High quality roof mounted silencer for operator safety.
  • Alternator moving parts fully guarded.
  • Optionally, emission compliant models can be assembled to EU Stage IIIA

The Control Panel

The UK made Deep Sea 7000 series of controllers provides outstanding monitoring and features. The Deep Sea control modules have become a “must-have” feature for all segments of the generator market as in include a wide range of configurable options and extension modules to meet every requirement.

  • Low oil pressure shutdown.
  • High engine temperature shutdown.
  • High engine temperature shutdown.
  • Under Voltage warning/shutdown.
  • Over speed / over frequency.
  • Under speed / under frequency.
  • Over crank / fail to start alarm.
  • Over current alarm
DSE7310 MK2
  • Manual and automatic modes.
  • Three phase voltage monitoring.
  • Three phase current monitoring.
  • Frequency monitoring.
  • Start, crank, crank rest, warm up timers.
  • Return and cool down timers.
  • Battery under / over voltage alarms.
  • Exercise scheduler

kVA Power

Genset Model Prime Output Standby Output Perkins Engine Model Stamford Alternator Model
kVA kW kVA kW
SHP 135 136 109 150 120 1106A-70TG1 UC1274E1
SHP 150 151 120 166 133 1106A-70TAG2 UC1274F1
SHP 180 180 144 200 160 1106A-70TAG3 UC1274G1
SHP 200 200 160 220 176 1106A-70TAG4 UC1274H1

Weights & Dimensions

Genset Model Open Sets Fuel Tank Capacity Canopied Sets Fuel Tank Capacity
L x W x H mm, Weight kg L x W x H mm, Weight kg
SHP 140 2200 x 840 x 1600 mm, 1288 kg 400 L 4900 x 1820 x 2463 mm, 4307 kg 275 L
SHP 150 2200 x 840 x 1600 mm, 1344 kg 400 L 4900 x 1820 x 2463 mm, 4408 kg 275 L
SHP 180 2200 x 840 x 1600 mm, 1394 kg 400 L 4900 x 1820 x 2463 mm, 4408 kg 275 L
SHP 200 2200 x 840 x 1600 mm, 1440 kg 400 L 4900 x 1820 x 2463 mm, 4648 kg 275 L
