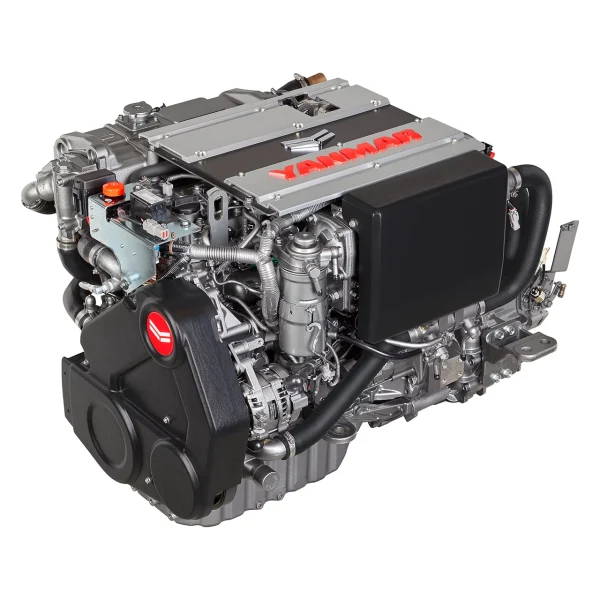

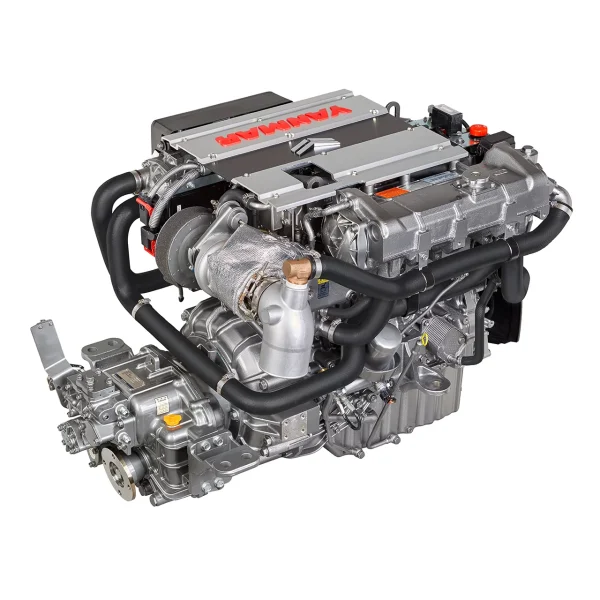

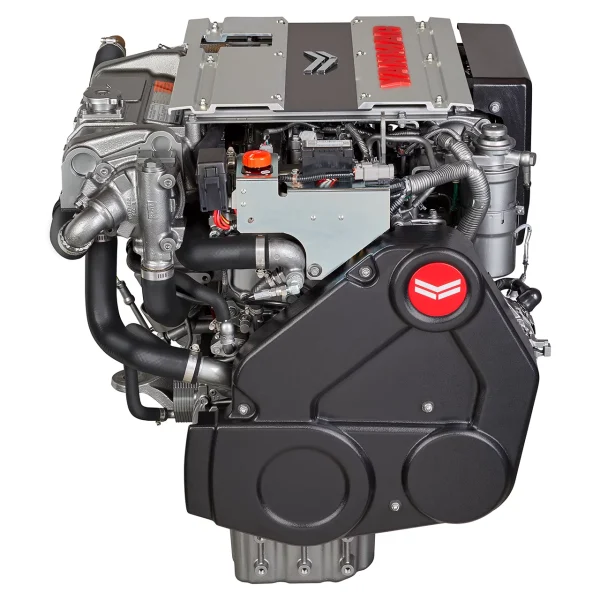

Yanmar 4LV170 Marine Engine

Rated Output: 125 kW / 170 mhp
Rated Speed: 3500 rpm
No. of cylinders: 4 cylinders
Combustion system: Direct Injection, Denso Common Rail System
Aspiration: Turbocharged & Intercooled
Dry weight without gear:334 kg / 736 lbs
Controls: Mechanical (optional – VC10 system)
Certifications: RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS

SKU: 4LV170 Categories: ,


Standard Engine Package

  • Exhaust mixing elbow [L-type]*
  • Through drive exhaust**
  • Alternator 12V – 130A
  • B25 panel*
  • VC10 Vessel Control System**
  • Power steering**
  • Mechanical throttle sensor*
  • Flexible mounts
  • Fresh water expansion tank

*Inboard model
**Sterndrive model

Optional Accessories

  • High-riser mixing elbow [instead of L-elbow]*
  • Through hull exhaust**
  • Secondary alternator 12V – 130A or 24V – 110A including smart regulator
  • Extension harness [3m, 5m, 10m, 20m]
  • Second station
  • C35 panel*
  • Sidemount control head*
  • VC10 Vessel Control System*
  • JC20 Inboard Joystick*
  • JC10 Sterndrive Joystick**
  • NMEA2000 Engine monitoring system
  • Internal tie-bar
  • Semi 2-pole
  • SOLAS including Certificate [factory fit only]
  • Hot water connection
  • Water separator
  • Man Over Board Switch (single)
  • C-Type trolling (KMH50 only)*
  • On-board spare parts kit

Additional information




Water Cooled




EU Stage III B / Tier 4i

Max Power kW

Over 100 kW
