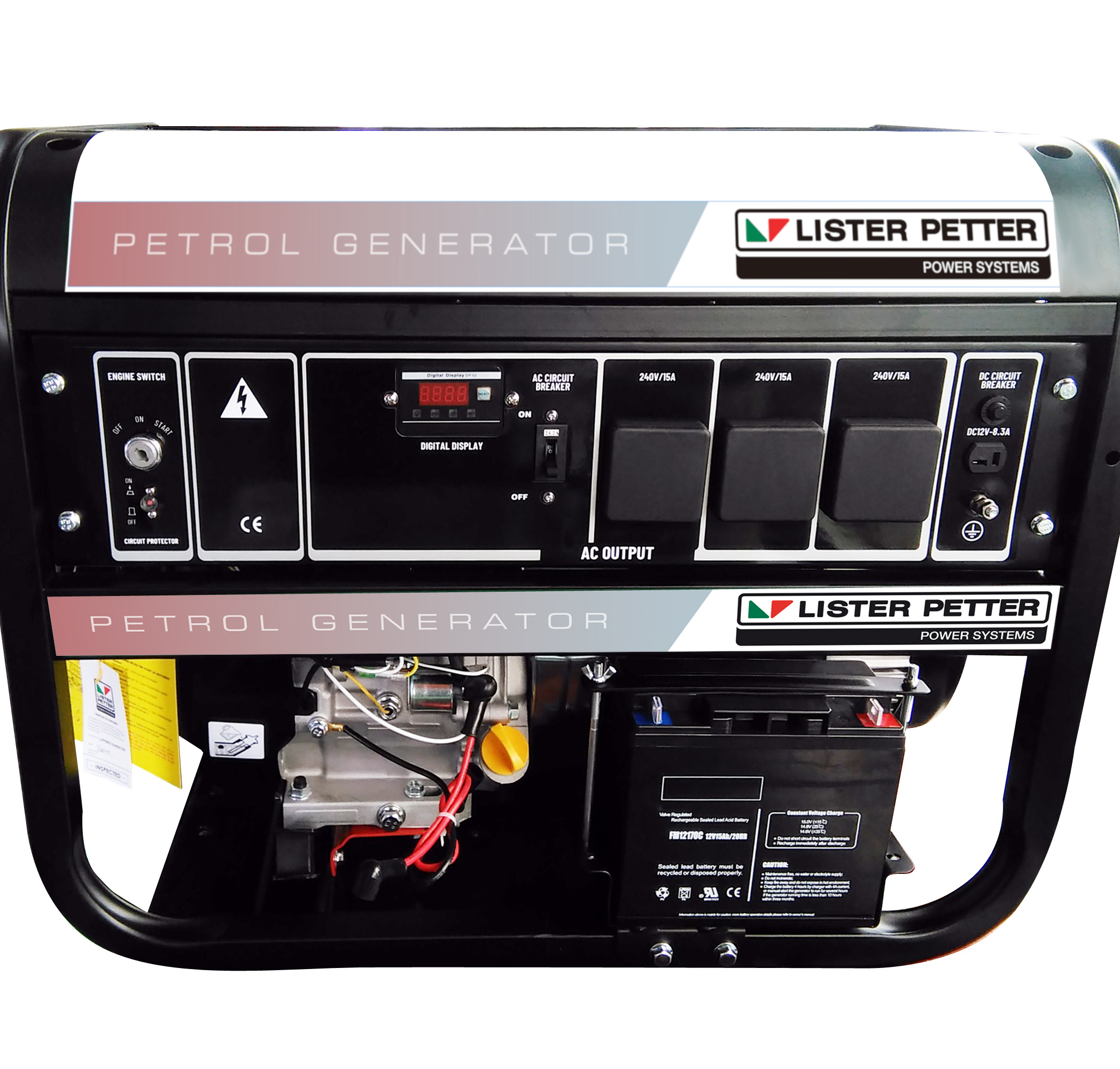

LPP7.5RE Petrol Generator

The LPP7.5RE is the smallest model in the range of LPP petrol gensets. This small compact generator will produce an output of 7500W with a surge ability of 8000W. These sets are fully portable with the addition of heavy-duty flat-free tyres and folding handles. meaning you can take this small powerful petrol generator anywhere.

Basic Characteristics

• 50Hz 3000rpm single-phase portable generator
• uses unleaded petrol conforming to BS EN 228:2012 (95 RON)
• naturally aspirated OHV SI engine
• CE 2006/42/EC Approved
• NRMM EU Stage V Approved
• US EPA Phase 3 Approved
• CARB-California Air Resources Board

Alternator Specification

• single bearing 2 pole brush alternator
• solid state AVR with +- 1.5% voltage regulation as standard
• class H insulation on rotor and stator
• IP23 protection class

Included Extras

• heavy-duty oversize flat free tyres
• high leverage folding handles
• tool kit

Control Panel

All LPP petrol generators have a vibration-isolated control panel which has the following features:

• 16A 230V panel mounted CEE 2P+E covered industrial sockets
• AC outlet circuit breaker with over-current protection
• 12V DC outlet and overload circuit protection
• digital control module monitoring output voltage, output frequency, engine run hours and low engine oil shutdown protection

Full Specifications

Model: LPP7.5RE
AC frequency: 50Hz
Rated AC voltage: 110V / 120V / 220V /230V / 240V
Surge AC Output: 7500W
Rated AC Output: 8000W
Phase: single
Starting System: Recoil + Electric
Fuel: Unleaded Petrol
Fuel Tank Capacity: 25L
Fuel Consumption @ 75% load: 4.17 l/hr
Noise Level @ 7m: 72 dB(A)

Weights and Dimensions

Dry Weight: 103kg (227.1lb)
Length (A): 690mm (27.2″) – with handles 1112mm (43.8″)
Width (B):  525mm (20.7″) – with wheels 700mm (27.6″)
Height (C): 559mm (22″) – with wheels 696mm (27.4″)
