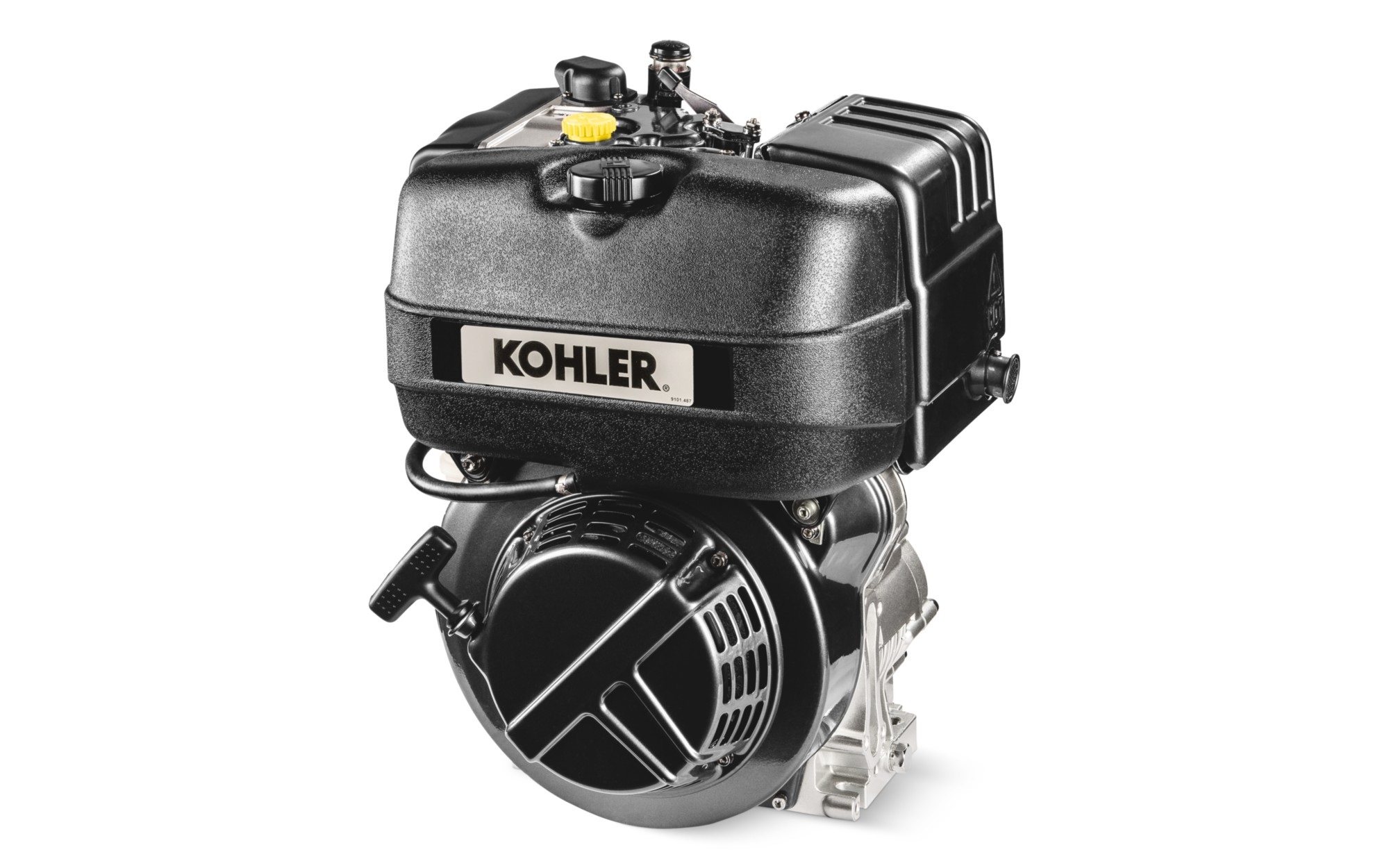

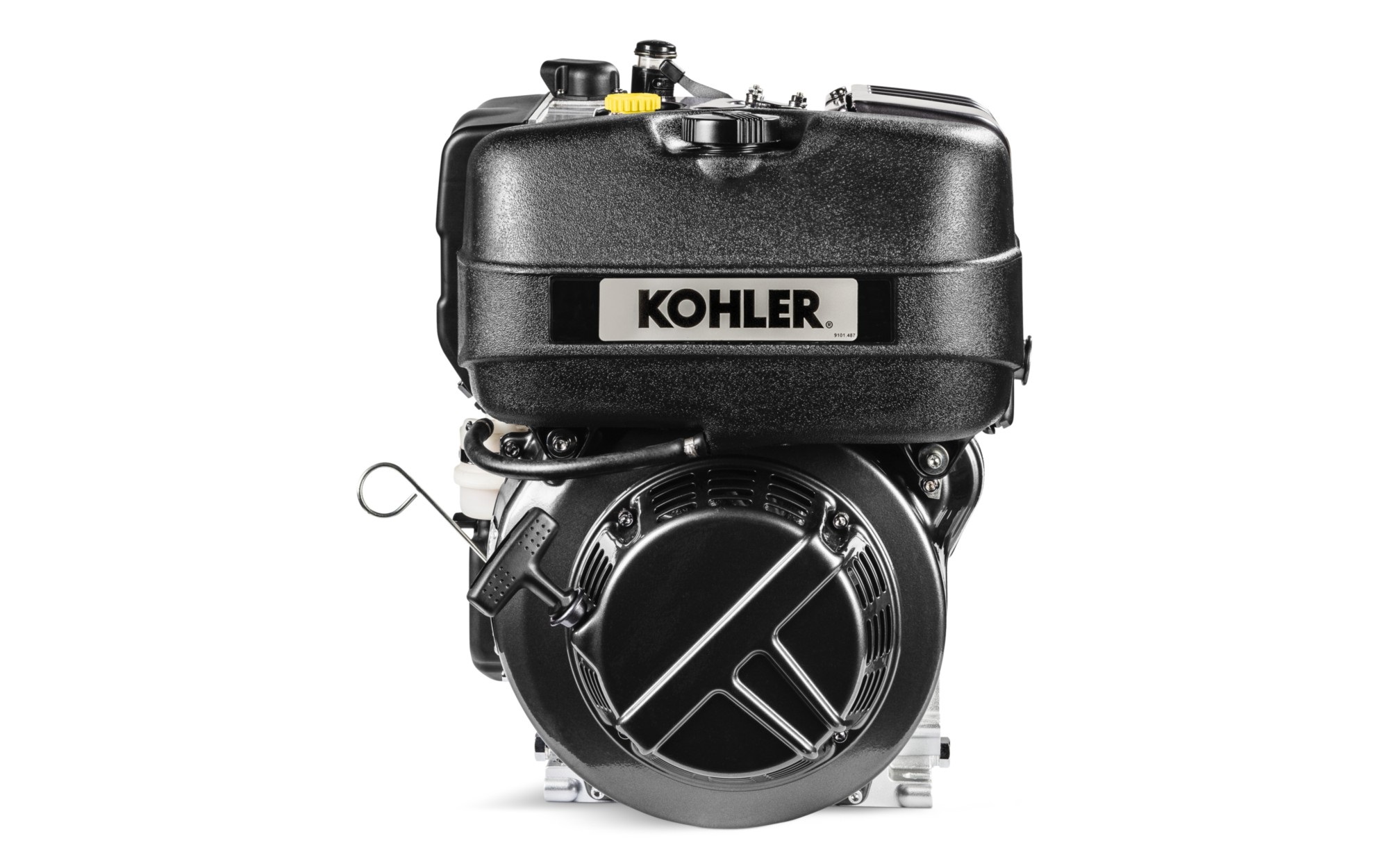

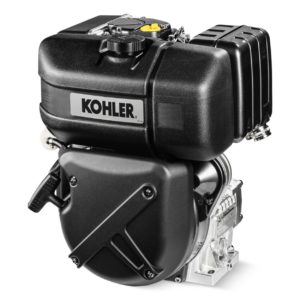

Kohler KD15-225
Part No: KD15-225

Kohler

Fuel Type: Diesel
HP: 4.5
Shaft: Horizontal
Cylinders: 1
Cooling: Air
Emissions: China Phase II

SKU: KD15-225 SKU: KD15-225 Category:

Description

Four-stroke, aluminium cylinder head, the automatic extra fuel starting system

Model: KD15-225
Power: 3.3(4.5) kw (hp)
Displacement: 224 (13.7) cm3 (in3)
Bore: 69 (2.7) mm (in)
Stroke: 60 (2.4) mm (in)
Gross Torque: 10.4 (7.7) Nm (lb-ft)
Compression Ratio: 21:1
Dry Weight: 28 (61.7) kg (lbs)
Oil Capacity: 0.9 (1) L (US qt)
Lubrication: Full pressure w/full-flow filter
Dimensions: 358 x 275 x 417 (14.1 x 10.8 x 16.4) L x W x H mm (in)
Emissions Compliance: China Phase II

Standard Equipment

  • Recoil starting with automatic compression release
  • Fuel tank
  • Fuel filter
  • Dry air cleaner
  • Muffler with guard
  • Accelerator and stop manual control
  • Automatic deaeration on injection pump
  • Wire mesh oil filter
  • Conical power take-off
  • External safety fuel filter
  • Automatic fuel control during start
  • User maintenance and spare parts booklet

Additional information

Brand

Kohler

Cooling

Air Cooled

Cylinders

1

Emissions

Non Compliant

Max Power kW

Under 5 kW

Accessories

ACCESSORIES ON DEMAND

  • Power take-off flywheel side (engines with electrical starting)
  • Power take-offs with flanging and special shaft
  • Lateral power take-off
  • Internal dynamic balancer
  • Electric start 12V / 24 V
  • Key switch panel
  • Fuel lift pump
  • Emergency stop through electrovalve
  • Accelerator and stop remote control
  • Oil pressure switch
  • Oil temperature switch
  • Oil bath air cleaner
  • Cylinder head temperature switch
  • Glow plug on intake manifold
  • Stop with solenoid valve
  • Recoil with denoising cover
  • Grass protection for engine cooling
  • Alternator with voltage regulator 12 V or 24 V
  • Oil level sensor switch
  • High capacity oil sump (KD15-350 and KD15-440)
  • High capacity oil and fuel filters for remote assembly*
  • Single lever control
  • Control lever guard
