Hatz 1D90
Part No: 1D90

Hatz

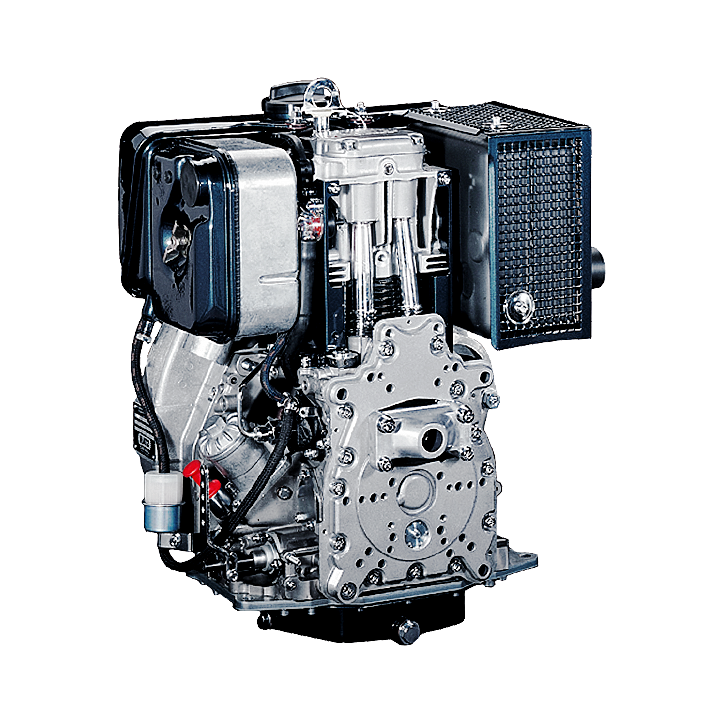

The Hatz 1D90 is a small single-cylinder industrial diesel engine.

  • Power from 6.4 to 11.2 kW
  • max. torque 40.7 Nm
  • High performance and robust
  • Direct injection method
  • Certified to EPA Tier IV Final and EU Stage V

SKU: 1D90 Categories: ,

Description

The Hatz 1D90 is a small single-cylinder industrial diesel engine.

  • Power from 6.4 to 11.2 kW
  • max. torque 40.7 Nm
  • High performance and robust
  • Direct injection method
  • Certified to EPA Tier IV Final and EU Stage V

Construction

  • Air-cooled single-cylinder 4-stroke diesel engine
  • Cylinder arranged vertically
  • Crankcase made from die-cast light alloy
  • Grey cast iron cylinder
  • Crankshaft and conrod on plain bearing
  • Pressurized lubrication with fine filter in the main flow
  • Valve timing via rocker arm, push rods, finger follower and camshaft
  • Cooling fan and alternator integrated in the flywheel

Characteristics

  • High degree of customization thanks to numerous options
  • Lower fuel consumption
  • High performance single cylinder diesel engine series
  • Long service life
  • Maintenance friendly
  • Closed crankcase ventilation

Additional information

Brand

Hatz

Cooling

Air Cooled

Cylinders

1

Emissions

EU Stage IV / Tier 4, EU Stage V

Max Power kW

10 kW – 20 kW
