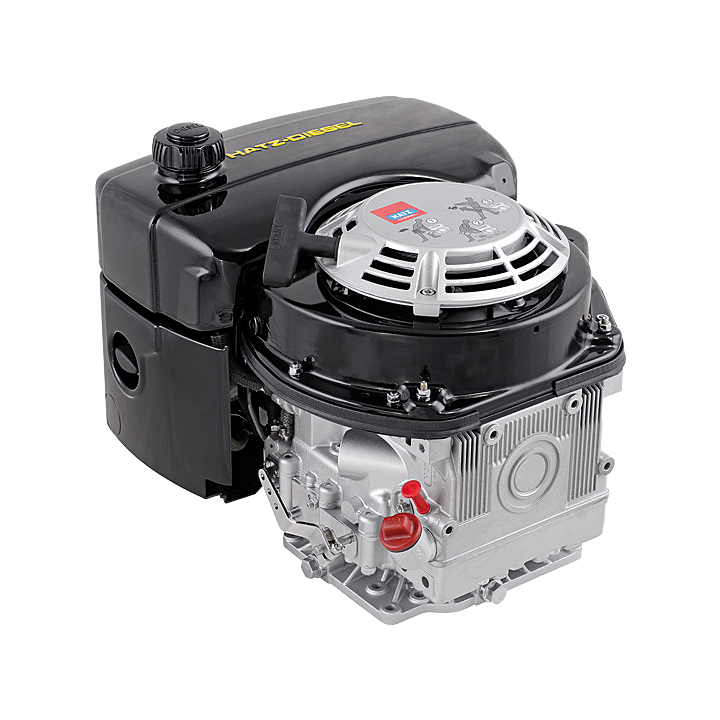

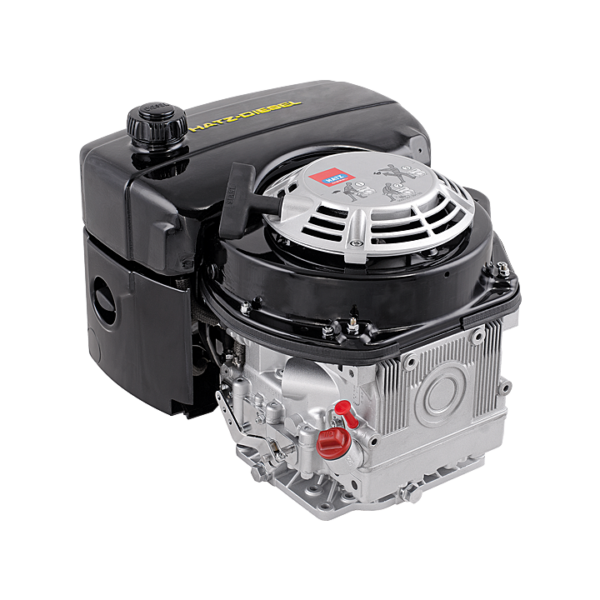

Hatz 1B30V
Part No: 1B30V

Hatz

The Hatz 1B30V is a small single-cylinder industrial diesel engine.

  • Power from 2.3 to 5.0 kW
  • max. torque of 16.2 Nm
  • Compact and lightweight construction
  • Direct injection method
  • Certified to EPA Tier IV Final and EU Stage V

SKU: 1B30V Categories: ,

Description

The Hatz 1B30V is a small single-cylinder industrial diesel engine.

  • Power from 2.3 to 5.0 kW
  • max. torque of 16.2 Nm
  • Compact and lightweight construction
  • Direct injection method
  • Certified to EPA Tier IV Final and EU Stage V

Construction

  • Air-cooled single-cylinder 4-stroke diesel engine
  • Crankshaft arranged vertically
  • Crankcase made from die-cast light alloy
  • Light alloy cylinder head
  • Forged crankshaft
  • Pressurized lubrication with fine filter in the main flow
  • Valve timing via rocker arm, push rods, finger follower and camshaft

Characteristics

  • Can be customized thanks to numerous options
  • Lower fuel consumption
  • Long service life
  • Vertical crankshaft

Additional information

Brand

Hatz

Cooling

Air Cooled

Cylinders

1

Emissions

EU Stage IV / Tier 4, EU Stage V

Max Power kW

5 kW – 10 kW
